ILME 6-pin rectangular plug set - 20.03.2024



ILME rectangular plug combination / size for 6-pin standard inserts

•  6-pin contact insert pins SQUICH® quick connection type CSHM 06
•  6-pin contact insert sockets SQUICH® quick connect type CSHF 06
•  Matching open-back surface-mounted housing type CHI 06 L
•  Matching high grommet housing with lateral cable connection and M20 thread type MHO 06 L20

Link to the ILME-connectors


Thermostat with push-in terminals, snap-on - 05.03.2024



•  Setting range 0 to +60°C or -10 to +50°C
•  Switching current / switching power 10 A / 250 V AC or 30 W / 24-72 V DC
•  Switching temperature difference 7 k / +-4 K tolerance
•  Material Plastic according to UL94 V-0, light grey
•  Dimensions 60 x 33 x 41 mm, IP20 / II, CE, cURus, VDE

Also available as a thermostat with red rotary knob for heaters

more

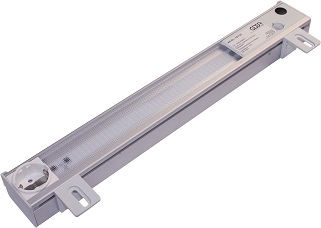

Low-cost LED switch cabinet light in aluminium housing - 21.02.2024


•  Motion detector (switch-on time 10 minutes), 16A Schuko earthed socket
•  3-pin plug (Wieland plug pattern), through-wiring
•  210-240 V 50/60 Hz, LED module 10 W, 1.000 lumens, 4.000 K
•  Dimensions 400 x 60 x 40 mm
•  -25°C bis +45°C
•  IP20, CE, EMV, RoHS (standard EN 55015 as of 2013)
•  2 pcs. of brackets for horizontal or vertical mounting as accessory

more

AXYR®push-in contacts 16A for ILME-inserts - 07.02.2024


High-density tool-less contacts instead of crimping with tools!

•  Spring push-in with actuator button
•  Silver-plated contacts, 10 to 46 poles
•  Cross-section 0.25 mm2 to 2.5 mm2 (up to 4 mm2 without ferrule)
•  16 A / 500 V 6 kV 3 or 16 A / 830 V / 8 kV 2 according to EN 61984
•  -40°C to +125°C
•  Certified for CE, cURus, UKCA, CQC, DNV, BV, EAC
•  Alternative to CCE series
•  With pins for coding

more

Cuponal-AlCu-Busbars - 24.01.2024


   as an alternative to solid copper busbars.

•  Cost optimisation due to lower weight, easier processing
•  Better heat dissipation due to larger surface
•  Smaller price fluctuations due to lower copper content
•  Round-edged profiles from 3 x 10 mm up to 15 x 120 mm
•  Standard length 1.997 mm (larger quantities also available in 4 m)

more

Protection hood IP56 for cabinet fans - 10.01.2024



•  Stainless steel AISI 304 - 1.4301 (V2A)
•  Protection class IP 56 / NEMA 1,2,3,3X,3R,3RX,3S,2SX,4,4X,5,12,12K,13
•  Dimensions 150 x 230 x 40 mm up to 250 x 480 x 160 mm
•  With food-safe blue seal
•  Certification CE, cULus, cURus
•  Screwless assembly and disassembly of the bonnet
•  Easy to clean

more

Hot cutting tools - 13.11.2023


Handset for short-time operation
•  Suitable for cutting and fusing the ends of synthetic fabrics.
•  For use with small quantities.
•  Heating time of the cutting edges approx. 6-8 sec.

Table-top for continuous operation
•  Smallest tool for continuous operation with fixed cutting edge.
•  For quick and clean cutting as well as welding.
•  Working range 30 mm

more

ILME Modular-System MIXO - 25.10.2023


Fits all standard enclosures, easy frame mounting, plug-in compatible!

• Large portfolio with 76 different modules, 5 frame sizes, 20 enclosure variations
• Signal modules up to 42 poles and high-current modules up to 300 A
• Bus modules RJ45, Megabit, USB, LWL, D-Sub, Coax, HDMI
• High-voltage modules up to 5 kV, pneumatic modules up to 10 bar with plastic and metal contacts
• Crimp contacts, screw contacts or NEW: quick-connect AXYR
• Contacts silver-plated, gold-plated, FeKo or for high mating cycles

more

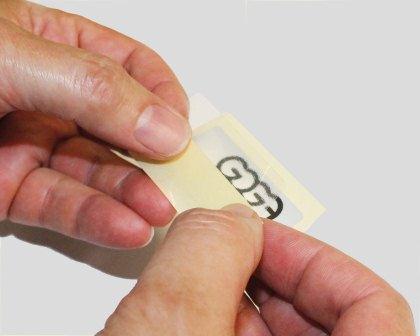

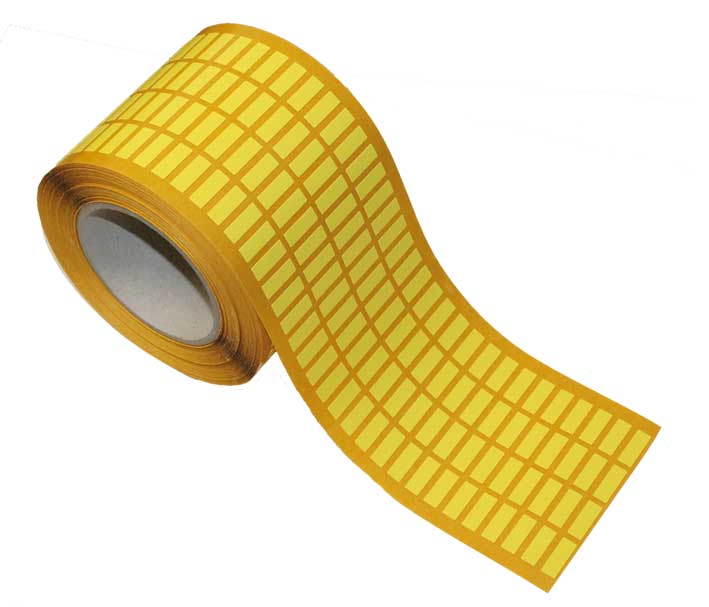

Warning signs for electrical engineering - 11.10.2023



• Warning labels triangular or multilingual
• Electrical conductor labels
• Reusable imprinted labels
• Prohibition and mandatory signs
• Cable inspection labels and handy hole punch
• Temperature measuring strips

more

Slim solid-state-relay 8 A - 27.09.2023


• For plugging into 6 mm wide standard relay socket, only 5 mm wide
• Output 8 A / 24 VDC (Ta = 60°C)
• Input 15 - 30 VDC
• High switching frequency max. 500 Hz, switching time < 60 µs
• Low operating current of 10 mA
• High insulation voltage input/output 3.75 kV

more

Single-channel electronic load monitoring - 13.09.2023


• Electronic fuse protection of 24 VDC circuits
• Adjustable current range up to 8 A in 1 A steps
• 5 patented tripping characteristics, thermal and magnetic, nimble to super-slow
• Safe tripping, no limit switch function, single-channel or collective fault signal
• Can be used in DC 12 V and 24 V circuits, 90% and 100% early warning
• Direct connection of consumers with + and -

more

M23-Motor-Connectors for signals and power



• M23 thread or Speedtec quick-release fastener
• Professional crimp contacts-inserts with 12-/17-poles and 1-/6-/8-poles
• -20°C to +130°C
• Approvals: cURus, P66/67
• Numerous other versions available!!!

more

Relay with 2 CO-contacts and LED-display



• 2 change-over contacts max. 8 A /250 V AC / 2,000 VA
• Coil voltages 24 V DC, 24 V AC, 230 V AC
• LED display and manual override, 24 VDC with free-wheeling diode
• Contact material AgNi, approval VDE, cULus
• Socket for DIN rail available

more

Divisible cable glands for assembled cables

Divisible cable gland
   • M20 to M63, in light grey or black including locknut
   • Material: polycarbonate UL 94-V0, self-extinguishing, halogen- and silicone-free
   • Protection class: IP 54, approvals: cURus, EN45545-2
more

Slotted inserts
   • Material: elastomers UL 94-V0, self-extinguishing, grey or black
   • Approvals: cURus, EN45545-2
   • For cables with 1-15 mm Ø or multiple from 2 x 2 mm to 4 x 6 mm Ø
more

Ring cable lug with PVC, polyamide or nylon insulation


• Material: E-Cu, gal. Sn, insulation: PVC, PA 6.6 or nylon
• Temperature range PVC: -10°C - +75°C, PA and Nylon: -60°C to +105°C
• Standards: DIN 46237, DIN 46234
• Approval: PVC and PA partly UL listed, Nylon completely UL listed
• Cross-sections: 0.1-0.5 mm2 yellow, 0.5-1.5 mm2 red, 1.5-2.5 mm2 blue, 4-6 mm2 yellow
• Hole diameter: M2 to M14

more

PVC insulated metal conduit

Conduit:
   Highly flexible, galvanised steel, PVC-jacket grey, ø 10 mm up to 53 mm
   Protection class: IP65, pressure resistance 750 N
   Temperature range: -5°C up to + 60°C
more

Fittings:
   FIX nickel-plated brass or ROTATABLE made of brass + PA6
   Protection class: IP54 or IP65
   Temperature range: -25°C to 150°C resp. -25°C to +105°C
   Available sizes: M12 to M63 or PG7 to PG48
more

Electrical Screw Connections For Cable-Lugs And Copper-Bars


• Curved, springy geometry minimises settling and creep phenomena
• Positive locking toothing
• Uniform and permanent contact pressure and pretensioning force retention
  in a defined range
• Corrosion protection with defined friction value
• Also suitable for railway applications EC 61373
• Steel with hardened surface and zinc/nickel coating or
  stainless steel 1.4401 / A4
Available from M3 to M16

more

Plastic Push-In Rivets

• E.g. for mounting cable ducts in cabinets
• This push-in rivet has a flat round head and offers a fast, cost-effective
  fastening solution with good electrical insulation properties.
• It can be fitted with an push-in rivet tool for faster installation.
• Material Nylon 6/6, natural white or black
• Compatible hole diameter 6.0 mm
• Compatible panel thickness range 2.0 - 8.0 mm

more

AXYR® Push-in contacts instead of crimping

The ILME AXYR® technology offers an extremely compact push-in spring connection
that is equivalent to the crimp connection, but does not require a special crimping tool.
A simple and tool-free wire connection, resistant to vibrations.

• CQY 05 ........ 5-pole + earth for square small plug size 21.21
• CX 06 CY ..... 6-pole MIXO module insert
• CX 08 CY ..... 8-pole MIXO module insert
• CQY 08E ...... 8-pole + earth for shell size 32.13

more

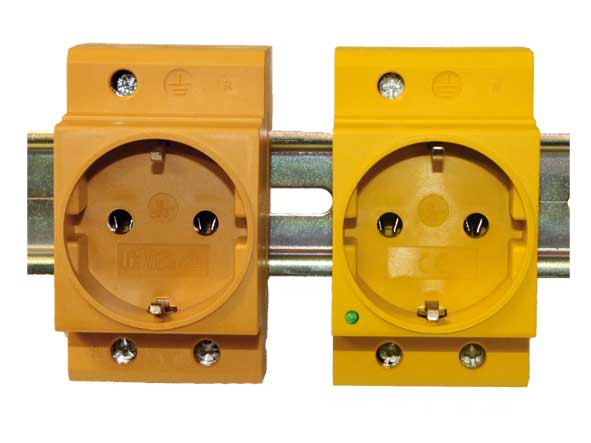

Yellow , orange and red sockets snap-on

Snap-on sockets for circuits even when the main switch is off:

YELLOW ..... with own FI/LS for fuse protection in the control cabinet
ORANGE ..... for external fused circuit (e.g. hall lighting)
RED ............. for UPS circuit with battery supply
• 230 VAC / 16 A
• 45 mm width (dimensions of automatic circuit breakers)
• IP20 finger-safe, all terminals on one side!

more

Spring steel mounting clips for steel beams

• Simple and quick assembly WITHOUT drilling and welding
• 19 Articles and combinations as problem solvers for mounting on steel girders
• For indoor and outdoor applications, in humid and slightly corrosive environments
• Material: Spring steel according to DIN 17222, high protection against cathodic corrosion
• Application range during assembly: +5 to +35°C
• For steel beams from 1.5 mm to 20 mm thick
• Load capacity up to 90 kg depending on clip type

more

Low Cost ABS-Enclosures

14 Box-sizes 50 x 52 x 36 mm up to 230 x 300 x 86 mm available

• Material: ABS with PUR sealing
• Material cover screws: Steel A2K Zinc passivated
• Temperature range: -40°C up to +80°C
• Protection grade: IP55
• Colour: White RAL 9016
• Fire behavior: UL94 HB/1.6

more

Inductive proximity sensors

Robust, reliable and extremely accurate, in brass or stainless steel

• Flush or non-flush
• Four sizes: M8, M12, M18 and M30, connection M8 / M12 plug / 2 m cable PVC
• Yellow LED, visible from any angle, flashes in case of short circuit or overload
• Precise scanning and suitable for high-speed operations up to 2,000 Hz
• Operating voltage 10-36 V DC, output current 200 mA, PNP
• Operating temperature -25°C to +70°C
• MTTFd 550 to 2914 years @ 50°C (depending on diameter), cULus

more

90° flange housing for separable cable sleeves for pre-assembled cables

• Housings available for 8 different grommet combinations
• Protection class IP65 according to DIN EN 60529
• Mechanical protection of the cable
• Splash water protection at the entry point
• Strain relief according to DIN EN 62444
• UL94-V0 self-extinguishing, -40°C to +80°C
• Vibration-proof, UV-resistant, silicone-free, halogen-free
• cURus, HL3 according to EN 45545-2, EN62373

more

Buttons and switches - Mounting of the actuating part with locknut

• Push-button, illuminated and key-operated switches
• Selector switches, key-operated selector switches and illuminated selector switches
• Signal lamps and buzzers
• Emergency stop mushroom pushbuttons and rough manual switches
• Joysticks, potentiometer, operating hours counter, transformer
• Digital displays

more

RJ45 network galvanic isolator - For galvanic isolation in Ethernet networks

• Protection against potential differences up to 5 kV AC@50Hz / 8.5 kV DC (60s)
• EN 60601-1 and EN 60601-1-2 compliant, UL-approval
• Also suitable for medical applications
• 2 x RJ45 socket shielded, with and without DIN-rail dadapter
• Transmission standard 10 GBit/s
• Temperature range -10°C to +60°C

more

Combined DIN-rail

• Made of aluminium EN 60715
• With groove for sliding nuts
• Bar a 2 m
• PU 20 m
• Weight 0,343 kg/m

more

Crimping Tool With Quick-Change System

• Simple quick-locking with small lever (without tedious knurled screws)
• Extremely robust and reliable
• Positive lock with release guarantees complete crimping
• Adjustable crimping pressure
• Wear-resistant quick-change system without wearing out springs
• Can therefore also be used in vehicle construction, aircraft construction and automation
• Up to 200 different crimping inserts available

more

High-quality EMC cable gland

With 2 counter-rotating contact springs to increase the contact cross-section

• Increased current carrying capacity (optimal for railway applications)
• Optimum derating performance according to IEC 60512-5-2
• Excellent electromagnetic shielding up to high frequency ranges
• Reduced ohmic resistance and voltage drop, shock and vibration resistant
• Active contact system, thus easy to dismantle without damaging the cable screen
• IP66, IP68 (5bar - 30 min) and IP69

more

Control Cabinet Dehumidifier

The air is directed through the fan over a Peltier heat sink.
There condenses, drips into a collection tray and runs into a conduit.

• Power supply 24 V DC, power 30 W
• Humidity measuring range 1 % RH to approx. 99 % RH
• Dehumidification start value 55 %, stop value 35 % (both factory-set)
• Dehumidification capacity 250 ml / 24 h (35°C RH = 85 %)
• Automatic defrost function and automatic overtemperature protection
• Can be snapped onto DIN-rail TS 35/7.5 or 15 or screwed on
• Drainage via a 1 m long heat-resistant silicone conduit

more

Low Cost Cable Marker

• For labelling with thermal transfer printer, only € 0,015 / marker
• Print label strip on both ends, stick as a flag around the cable
• Label size 9.5 x 89 mm
• Material polyester silver self-adhesive, adhesive acrylate permanent
• 10,000 labels per roll, inside winding
• Roll width 105 mm, roll core 3"
• Temperature range -40°C up to +150°C
• Resistant to water, sea water, alcohol, conventional household cleaners
• Wipe and scratch resistant when using suitable resin tapes

more

Inrush Current Limiter

• For connecting several power supply units to one circuit breaker
• 23 A short-term / 16 A permanent
• Integrated bypass relay, no simple NTC
• Internal thermal protection
• Can be snapped onto top-hat rail TS35/7.5 or 15
• Wide temperature range / -30 - +70°C
• Allows smaller a. faster circuit breaker

more

GOGAFIX Cable Glands

• z.B. GOGAFIX K M20x1,5 Klemmbereich 6-12 mm Art.Nr. 230003HGR
• Material: hochwertiges, schlagzähes Polyamid, PA 6 V0 nach UL 94
• Farbe: RAL7035 hellgrau
• Schutzart: wasserdicht IP 68 – 5 bar
• Temperaturbereich: -30°C bis +100°C
• Zulassung: VDE, cULus

more

Schrinking Tubes in Boxes

• High graded, flexible, flame retarded, thin walled
• Shrinking rate 2:1 or 3:1
• Black, different colours or green-yellow
• Temperature range -55°C bis +125°C
• AC 2.500 V / 1 Min., release 125% CW-1.600 V, UL224
• Also available as tissue shrinking tube!

more

48V-Power.Supply for POE-Swisches

https://www.gogatec.com/pdfs/NG/NGP_mwse_komp.pdf#page=2 • Singla phase or 3-phase 90-264 V AC oder 3 x 340-550 V AC
• Overvoltage and overload protection, short-circuit proof, self resetting
• Snappable on DIN-raisl
• Temperature range -20°C up to +70°C (Derating)
• cULus, EN55022 class A
• Also deliverable with 20 A or 5 A output current

more

Hose screw connection with cable seal

• Simple version or version with UR approval
• Polyamide PA6 halogen-free black or gray
• Fire class V2 or V0 according to UL94
• Degree of protection IP68
• Temperature range -25 ° C to + 100 ° C or -40 ° C to 105 ° C
• Available for hose nominal sizes 10 to 36 from M16 to M50 or PG
• Clamping range 4 to 36 mm

more

RJ45-Coupling snappable

- 10 Gbit, Cat.6A class EA, PoE, PoE+
- Snappable on DIN-rail, can be dismantled due to protruding lug
- Inside fully shielded zinc die-cast housing, outside plastic lightgrey RAL 7035
- Gold plated contacts, 1,5 A, dielectric withstanding voltage 1.000 V DC
- With or without potential equalizing stainless-steel spring
- Hinged dust caps

more

LED-Light for Control Cabinets

- Metal housing, 8 W, 14,5 W oder 29 W
- Mounting brackts for VX or universal
- Wit door-switch or motion detector
- On-/Off-switch, daisy chain wiring
- Schuko- or international socket
- 230 V AC , 120 V /60 Hz or 24 V DC

more

Soft Conduit with holder for cabinet door

- Material polyethylen PE-LD halogenfree, light grey
- Inside diameter 17 mm, 23 mm, 29 mm, 36 mm and 48 mm
- Small min. bending radius 30 mm up to 100 mm
- Flammability UL 94 HB, temperature range -40°C up to +90°C
- Suitable conduit holder: - Material ABS halogenfree
- Re-openable cover with screwdriver

more

USB Low Cost LED-Signal Tower

- LED-moduls with bayonet lock, red, yellow, green, blue, white
- Soundmodul with 4 alarms up to 90 dB
- Basemoduls ø 40 mm, 50 mm, 60 mm and 70 mm in silver, black or white
- 12 V DC, 24 V DC or 100 - 240 V AC
- Connecting spring terminals or fix cable 3m
- Many sockets for direct-, wall- or tube-mounting
- With deliverable circular bracket ø 54 mm compatible to the mounting holes of the competitors

more

more

Ultra-compact Ethernet-Switch

- Only 18 mm wide, 81 mm high and 65 mm deep
- 5 x Fast Ethernet MDI7MDI-X entry level unmanaged
- 10/100 Mbps, auto-negotiation, QoS function and BSP
- Compact metal-housing IP40 for DIN-rail
- Operating voltage 9,6 V DC up to 60 V DC
- High-level EMC capabilities EN 55032/35

more

NH Fuse-Links

- Size NH 00 up to NH 4, characteristic gG
- 2 up to 1250 A
- Rated voltage 500 V AC (400 V AC, 690 V AC)
- Braking capacity 120 kA
- "Combi"-version with dual indication visible at the top and centre
- Body made of quality steatite

more

Power Supply 24 V / 10 A

- Adjustable range 24-28 V
- Input 90-264 VAC / 47-63 Hz / 127-370 VDC
- Built-In active PFC function <0,95/230 VAC
- Protected again short circuit, over-load, -voltage, -temperature
- UL508, EN62368-1, EN61000-6-2
- Only 63 mm wide (63 x 125 x 114 mm)

more

D-Sub with spring terminals

- 9-, 15- and 25-pole, plugs and sockets
- ABS-housing black or metalized
- Srew-type locks with 2 x knurled screws 4/40 UNC
- Cable clip 3 mm up to 10,5 mm ø, wires max. 0,5 mm2
- Protection class IP20, flammability class UL 94 HB
- Working temperature -30° up to +85°C

more

USB charging socket

- For mobile phones and Tablet-PCs
- Input 24 V DC, Output 2 x USB-A 5 V / 1,5 A
- Efficiency 90 %, contact durability 5.000
- Polarity reversal, short-circuit and overload protection
- Status indication LED green
- Housing PA 66, IP20, EN 50155

more

Cable-Marker for thermal transfer printing

- 5 sizes available yellow and white (or 6 more colours)
- Cable tie mounting
- Halogen free, flame retarded class V0-UL94, -25°C up to + 105°C
- UV-stability (see test protocol), no break down in water and micro organism resistant
- Used in electro-industry, wind power, tunnel, telecom etc.
- Also versions for railway- and food-industry

more

LED-tube-lamp for machines

- Tube in borsilicateglass, methacrylate or polycarbonate, 5 mm
- Diameter 70 mm, 60 mm or 50 mm
- 24 V AC/DC or 230 V AC/DC / 12 W, 18 W, 26 W or 40 W
- Length 475 mm up to 1.565 mm
- Side seal caps IP67, cable gland M20 / IP68
- Colour temperature 6.500°K. average lifetime > 50.000 hours
- Working temperature -20°C bis + 50°C
- Energy efficiency class A+++, class of isolation II / III

more

Cable Tie 100 x 2,5 mm

- BLACK or WHITE
- Polyamid 6.6. halogenfree
- -40°C up to +85°C
- Self extinguishing
- Production in Europe, UL-Approbation
- Conditionally UV-resistant (black x2)

more

„Endlos“-Etiketten

- Rolls 50 mm, 75 mm or 100 mm wide, 40 m long
- Inexpensive version 105 mm wide, 125 m long
- Polyester permanent adhesive, 50 µm thick
- Colours silver, white, yellow
- Roll core 76,2 mm inside diameter, outside winding
- For printing with thermal transfer printers
- cULus File E484087 (except yellow)

- Also avalaible:Resin tape and labels for thermal transfer printers more

Stainless-steel cable marker AISI 316 - 30.11.2020

- For labeling with laser (or lasered with your file)
- Loose or glued on a support plate
- 75,0 x 7,0 mm (labeling field 50,40 x 4,0 mm) or
      95,0 x 12,0 mm (labeling field 52,0 x 8,0 mm)
- Suitably cable-ties promptly available

more

Conduit Stainless Steel - 15.11.2020

- Stainless Steel AISI 304
- -50°C up ti +250°C
- Double seam
- Inside diameter 4,0 up to 100,0 mm
- Outside diameter 6,0 up to 105,0 mm
- End bush and matching fittings nickel-plated brass

more

Limit Switches - 30.10.2020

- Many actuation variants
- Plastic or metal case
- 10 A /24 V DC-13 up to 1,8 A / 400 V AC-15
- Screw terminals or with cable
- 30 mm or 50 mm wide, 1 or 2 cable entries
- 1 NO + 1 NC

without cable with cable

Small Roof Filter Fan - 15.10.2020

- Optimum airflow inside the cabinet
- Operator is not blown on directly
- Mounting cut-out 177 x 177 mm
- Depht nur 26 mm oder 90 mm
- Easy snap-on mounting, filter change without tools
- Housing ABS, RAL 7035, IP54 with filter mat P15/350

more

Capacitor-Buffer Modul - 30.09.2020

- Electrolytic capacitor instead of battery
- Normal operating voltage 24 V DC
- Buffer time 20 A-modul: 350 msec 20 A up to 45 sec 0,1 A
- Buffer time 40 A-modul: 250 msec 40 A up to 62 sec 0,1 A
- LED indicator for signal status, 3 control signals
- Wide operating temperature -25°C up to +75°C
- Protection: Over voltage, over current and short circuit protection

more

LED-Multi-Function Beacon - 15.09.2020

FLASH - ROTATING - PULS PATTERN – BUZZER
- 22 light patterns configurable settings
- Diameter 80 mm or 100 mm, 600 cd in red
- 12-24 V DC or 100-240 V AC
- For indoor and outdoor, -20°C up to +50°C
- IP23, IP65, IP66/NEMA TYPE 4X,13, cURus

more

Cabinet cooling unit – roof mounted - 30.08.2020

- 450 W, 1.100 W, 1.500 W, 2,000 W at L35L35
- Maximum cooling power with minimum space
- Completely filterless, virtually maintenance free
- Condensation kit included
- 230 V or 120 V or 3x400/460 V AC
- RAL 7035 or stainless steel AISI 304, IP54, cURus

more

Yellow Tissue Adhesive Tape - 15.08.2020

- For repair - marking - covering - sealing - bundling
- For indoor and outdoor use
- 50 mm wide, 50 m long
- PE laminated tissue yellow
- Adhesive base of synthetic rubber
- Klebekraft 6.5 N/cm +--10%

more

Round Connector MICRO - 30.07.2020

- Only 14 mm outer diameter, 2-poles and 3-poles
- 400 V AC / 10 A, 48 V DC / 1 A, impulse withstand voltage 4 kV Cat II
- IP68 (30m/1h) - IP69K, outdoor usable
- Housing PA66 acc. to UL94 V0/V2, 40°C up to + 125°C
- Halogen- and silicone free, UV-resistant
- Accessories: Caps and multiple sealing, H-distributor available

more

Fuse-switch disconnector for cylindrical fuses - 15.07.2020

- For cylindrical fuses 10 x 38 mm, 14 x 51 mm, 22 x 58 mm
- For cylindrical fuses acc. to UL Class CC und Class J
- Mounting on standard DIN rail
- IP20, changing fuse without danger under voltage
- 1-, 2- , and 3-poles or 3-poles + N (not for UL)
- With or without LED-indicator

Lever Lock Connectors - 02.07.2020

- 2-, 3- and 5-poles, usable without tool, vibration resistant, maintenance free
- Fine-stranded, single-wires and multi-standard conductors
- No endsleeves needed
- Single wires connectable without level-opening
- With viewing windows for contact-control, two test slots front and back
- 0,2 mm2 (flexible 0,34 mm2) up to 4 mm2, 32 A / 450 V

more

New Cooling Units - 25.06.2020

- Small dimensions, wall mounted or installed recessed
- Cooling capacity 350 W up to 6,2 kW only in 7 enclosure-sizes, less cutouts
- Innovative fast one man mounting
- Built in electrical condensate evaporation, temperature range +10°C up to +60°C !
- Highly efficentt, electronic controller with color display
- IP56, NEMA Typ 3, 3R, 12, 4, 4X, cURus and cULus listed
- Power coated mild steel housing RAL7035 or stainless steel

more

Small Wire Mesh Tray 60 x 60 mm / Version 2 - 10.06.2020

- with DOUBLE ROD ON BASE to fix on angle-supports and grounds

- Electro and hot dip galvanised or stainless steel AISI 304 and AISI 316L
- Also available in black Typ C8
- Patented rounded safety edge
- IEC 61537, -50°C up to +150°C
- Length 3 m, packing unit 18 m

more

Copper Bar Terminal - 16.04.2020

- For mounting wires on copper rails
- For rails with 5 mm or 10 mm thickness
- Conductor cross-section 1,5 mm2 up to 300 mm2
- Material galvanized steel
- Hold spring made from stainless steel

- Also laminated and massive copperbars available

more

LED-Bar Graph Display - 09.04.2020

- Effortless installation in a 22,5 mm cutout
- 10 two-color bars (green/red), 10% each
- Input 0-5 mA, 0(4)-20 mA, 0(2)-10 V
- On/Off control, NPN-transistor output
- Alarm settings, 2 modes of blinking (fast/slow)
- Power supply 24 V DC IP65, -40°C up to +60°C

more

Docking frame for high number of matings - 02.04.2020

- 10.000 matings instead of 500 at standard
- Full floating docking frame
- Advanced opening stainless-steel guide pins
- For all HNM-inserts and HNM-crimpcontacts
- Also HNM-housings for HNM-inserts available

more

EMC-Screening Braid - 25.03.2020

- Tin-platted copper
- Screening values 65-75 dB @ 100 MHz
- Coverage 90-95 % depending on size
- Diverse diameters 3 up to 65 mm
- Up to nominal width 35 mm the braid is supplied
- with a PVC former tube

more

Glass Tube Fuses - 18.03.2020

- 5 x 20 mm, 5 x 25 mm and 6,2 x 32 mm
- Fast-acting, delay-action or middle time delay
- Low-/High-breaking capacity
- Nominal voltage 250 V
- IEC127.2 / standard sheet 3

more

Wiring Duct slotted - 11.03.2020

- Hard-PVC hardly inflammable
- Mounting holes according to DIN 43659
- Deburred, slotted ducts allow breakouts
- 2 m bars
- Accessories
- Cutter for wiring ducts see tools

more

Cable Gland Quick Fitting - 04.03.2020

- Press cable gland in the hole and adjust the cap
- Fix it very quick with long hexagonal socket and cordless screwdriver
- NO LOCKNUT NECESSARY !!!
- Polyamid or nickel plated brass
- M16 up to M32
- Dismounting with tool possible

more about nylon cable glands more about steel cable glands

DIN-Rail - 20.11.2019

- Sendzimir galvanized steel
- Rods 2 m
- Low 35 x 7,5 mm without holes or with elongated holes
- High 35 x 15 mm without holes or with elongated holes
- Small 15 x 5,5 mm without holes or with elongated holes

more

Digital Meters - 15.10.2019

- 3-pase, 7 measured variables:
   - Voltage, current, frequency, power factor
   - power and energy (active, reactive, apparent)
   - demand, %THD
- Input 11 bis 519 VAC / 5 A, supply voltage 230 VAC
- Panel mounted or DIN-rail mounted

more

FOOT SWITCH - 05.09.2019

- Groping or latching, with or without safety device notch
- Housing Plastic Vo or Alu yellow/grey, grey or red
- Contacts 1NO +1NC or 2NO + 2NC
- Red version without housing for emergency stop function
- Also available with M12-connector
- IP65, -25°C up to +70°C, IEC 60957-5-1
- 24VAC/10A up to 400VAC/4A or 24VDC/6A up to 250VDC/0,4A

more

ILME Bulkhead housing with M32 thread

- Simple mounting with M32-locknut
- For square connector inserts size 21.21
- 3-pol. up to 21 pol.
- Squich-, screw-, spring- or crimp contacts 6,5A up to 40A
- Or for RJ45 patch cables
- Steel- or stainless-steel lever
- In standard, aggressive environment, 180°C or EMV

more

Relay-Modul with pluggable terminals

- Screw- and spring-terminals pluggable
- Only 5,1 mm slim44-50QF001-0000
- 1 reversible changeover-Relay or opto-coupler
- Reverse polarity protection
- LED-display
- Block-terminals also deliverable

more

Pre-fabricated Pach-Cables Simple mounting through cable-gland

- Divisible Z-slotted seal suitable for cable-glands as follows

                M25 extended clamping
                M32 standard
                PG21 ENGLISCH

more

For detailed informations about our products you need Adobe Reader
